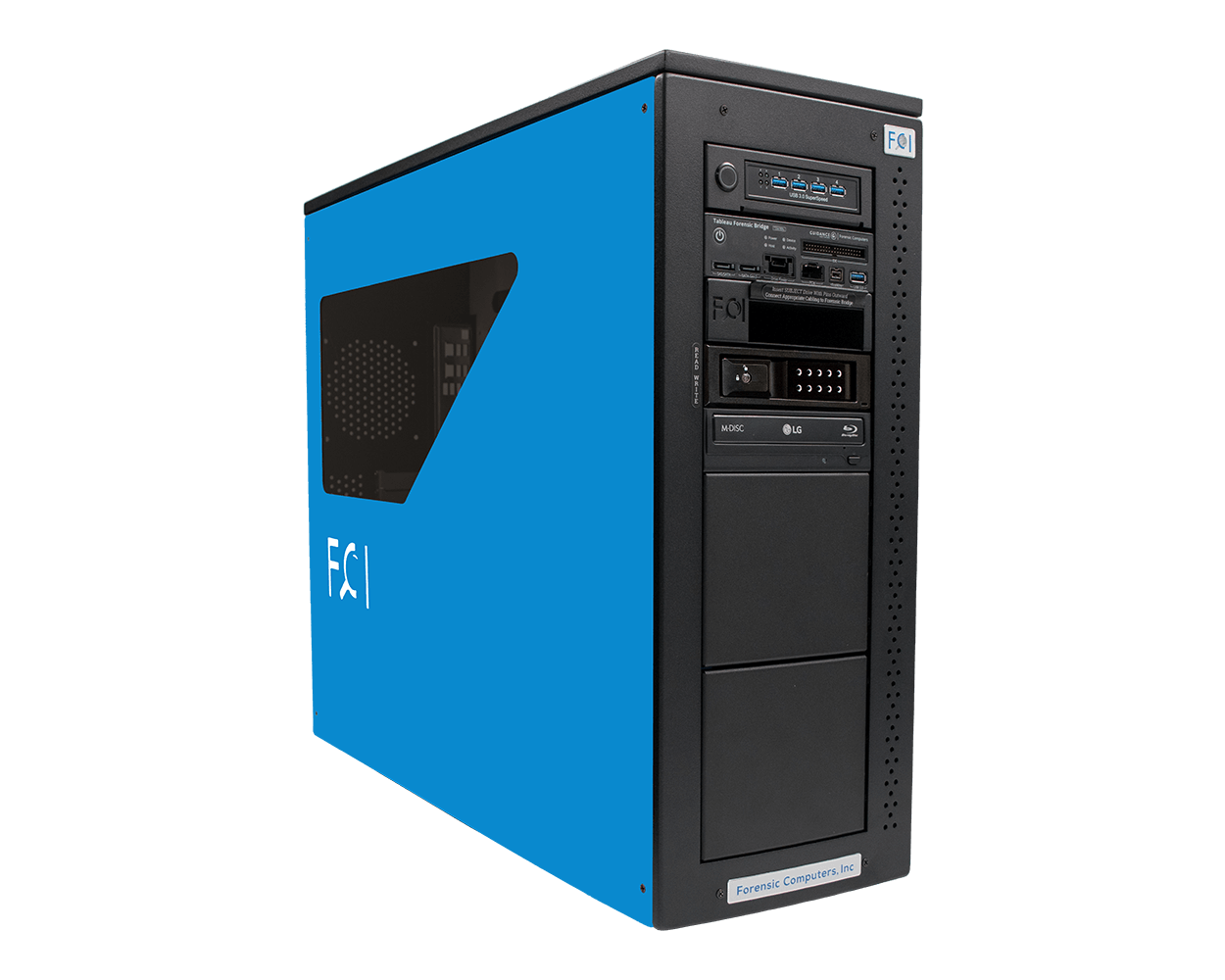

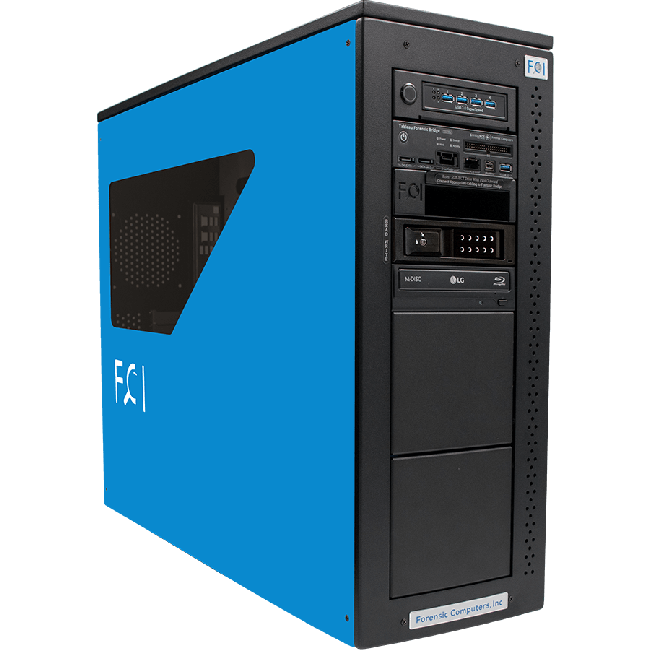

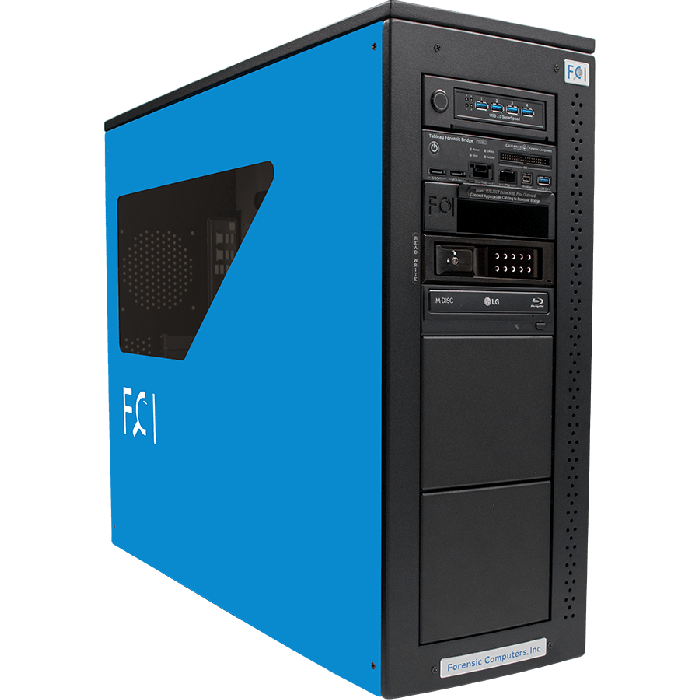

Phantym-AMX PRO
High-performance forensic workstation with AMD Ryzen Threadripper 9970X (32-core) and 256GB DDR5 memory.
Built for demanding digital forensic workflows with reliable performance and expansion-ready design.
Phantym-AMX
The PHANTYM-AMX is designed as a High-end, do-anything single processor workstation. Detego/FTK/EnCase ready out of the box and purpose built for forensics, with a focus on processing speed and reliability.
Features
-AMD sWRX8 Chipset
-AMD Ryzen Threadripper 9970X with 32-cores clocked at 4.0GHz
-Self contained liquid cooling
-256GB of DDR5 4800?MHz Memory
-OpenText T356789iu
-PCIe NVME Drives to ensure the best performance with digital forensic software
*See the specifications tab for a full technical specifications of the PHANTYM-AMX
Hassle-Free Forensics
In digital forensics, reliability is speed—not only is a forensic workstation required to quickly run demanding modern software analysis tools, but it must do so without failures of any kind. Time spent troubleshooting or recovering from system crashes is an unacceptable burden on already overloaded case logs.
The PHANTYM line has been designed to exactly meet this need by balancing affordability, reliability, and processing power. Performance is assured through the battery of testing and burn-in time that each system must undergo before leaving our facility. In addition to this individualized attention, each workstation configuration that we release or update first goes through a lengthy period of research and development to ensure full parts and software compatibility and to preclude any errors or inconsistencies with any component.
The PHANTYM line is the latest in a long series of purpose built FCI workstations—we concentrate on the hardware so that you can concentrate on your cases, making forensics truly hassle-free.??
Fully Customizable
A host of suggested upgrades is available to allow you to tailor the PHANTYM-AMX to exactly meet your needs, with further customization also available upon request. Please do not hesitate to call or email with questions or other requests.
Three Year Warranty (All inclusive)
FREE, platinum level technical support is included for the LIFETIME of each of our systems, regardless of warranty status.
?
| Model | Phantym AMX PRO |
| Case | FCI Custom Case with Hub Access Lock Out |
| Power Supply | 1200 Watt Modular |
| Processor | AMD Ryzen Threadripper PRO 9970X, 32-Core, 4.0GHz |
| Memory | 256GB DDR5 4800 |
| Networking | Integrated 10 Gigabit / 1 Gigabit LAN Controller |
| Graphics | RTX 5070 Ti |
| RAID | 12Gbps SATA/SAS RAID Controller |
| External Drive Bay Configuration |
Bay 1: I/O Panel with 2x USB-C, 2x USB 3.0 Bay 2: Tableau Forensic T356789iu Universal Forensic Bridge Bay 3: FCI Drive Dock Bay 4: Trayless SATA Assembly Bay 5-7: 5-Bay HDD Cage |
| Drives |
OS Drive: 1TB Gen5 NVMe SSD Data Drive: 8TB Gen4 NVMe SSD Case Drive: 4TB Gen5 NVMe SSD Cache/Temp Drive: 4TB Gen5 NVMe SSD Archive Drive: 12TB SATA III Hard Drive RAID 5: 5 x 12TB 7200 RPM SATA HDD |
| Display and Peripherals |
Dual 27" Widescreen LED Monitors with Speakers Mechanical Keyboard and Mouse |
| Operating System | Microsoft Windows 11 Pro 64-bit |
| Tableau T356789iu Cabling and Adapter Set |
One TC4-8-R2 SATA/SAS Signal Cable One TC6-8 IDE Signal Cable One TC6-2 2-inch IDE Signal Cable One TC2-8-R2 Molex Style Power Cable One TC7-9-9 18-inch FireWire 800 Cable |
| Tableau 7PC Bundle |
One TDA5-18 1.8-inch IDE Hard Disk Adapter One TDA5-25 2.5-inch IDE Hard Disk Adapter One TDA3-1 SATA Solid State Disk Adapter One TDA3-2 SATA Blade-Type Solid State Drive (SSD) Adapter One TDA3-LIF with 2 LIF cables One TDA3-3 mSATA + M.2 SATA SSD Adapter One TDA5-ZIF with TC20-BNDL cables |
| Tableau 5PC Bundle |
One PCIe Apple 2016+ SSD Adapter (TDA7-7) One PCIe U.2 SSD Adapter Cable (TDA7-4) One PCIe Card SSD Adapter (TDA7-1) One PCIe M.2 SSD Adapter (TDA7-2) One PCIe Apple 2013+ SSD Adapter (TDA7-3) One PCIe cable - 4 inch (TC-PCIE-4) |
| Warranty and Support | Three-year warranty with lifetime technical support |
